Measuring nanoparticle sizes poses significant challenges due to their minuscule dimensions, which often exceed the resolution capabilities of conventional optical microscopes. Researchers have turned to innovative solutions, such as the OpenDLS, a dynamic light scattering system developed by Etienne. This approach allows less-equipped laboratories to accurately determine the size of nanoparticles by analyzing light scattering patterns.
Dynamic light scattering operates by directing a laser beam into a suspension of fine particles. A light sensor measures the intensity of scattered light at a specific point. As the particles move randomly, known as Brownian motion, the intensity of the scattered light fluctuates. By analyzing how quickly the light intensity changes, researchers can calculate the speed of the particles and infer their size.
Innovative Design and Functionality

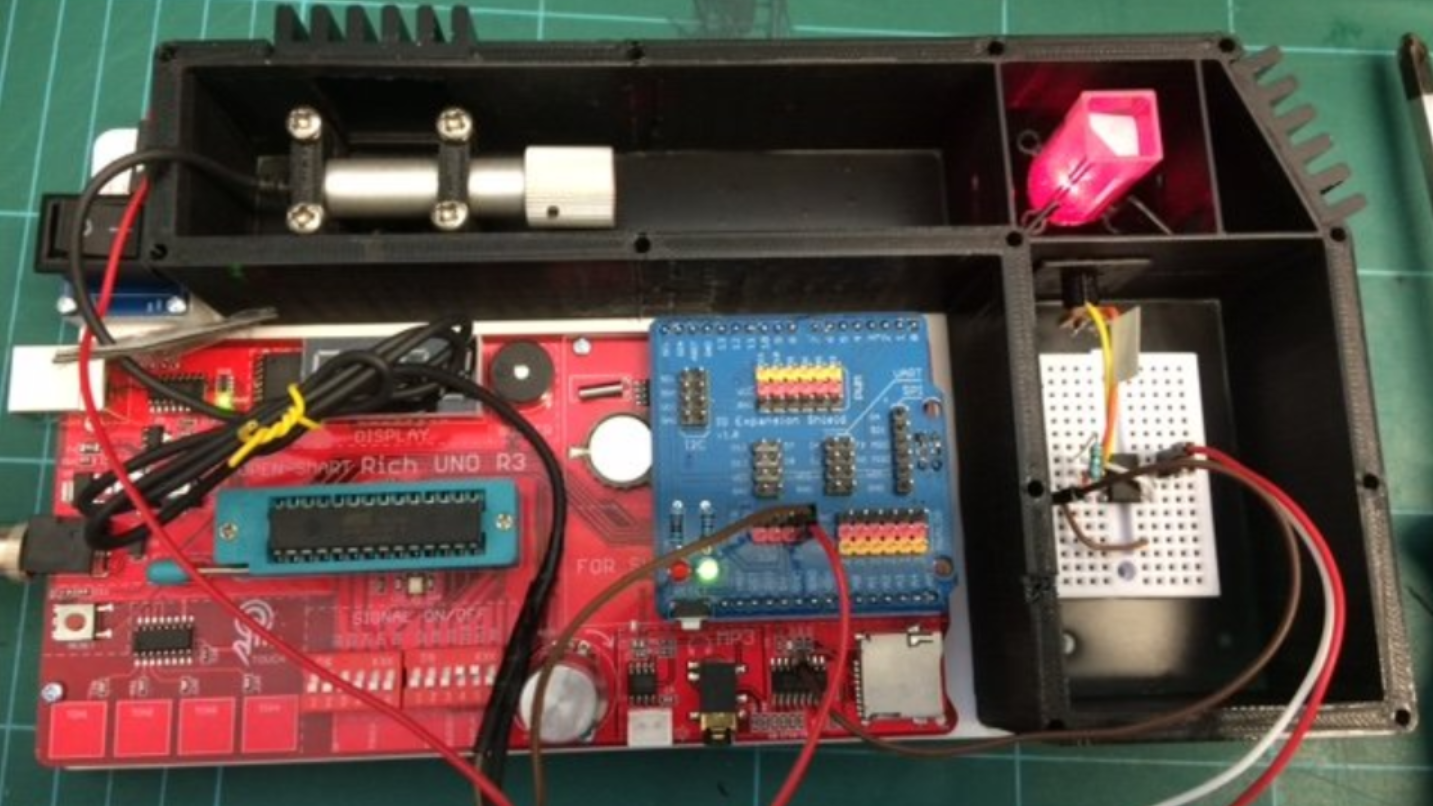

The OpenDLS features a frame constructed from 3D printing and laser-cut components that support a small laser diode. This diode directs light into a cuvette, where a light sensor is positioned to capture the scattered light. Initially, Etienne experimented with various sensor options, including a photoresistor and an Arduino-designed light sensor, before ultimately selecting a photodiode paired with a two-stage transimpedance amplifier.
An Arduino microcontroller samples the data at 67 kHz and transmits it to a host computer. The data is then processed using libraries like SciPy and NumPy. Despite its innovative design, the system’s software is somewhat outdated, being written in Python 2, but it remains accessible for updates by enthusiastic developers.
During testing with a standard 188 nm polystyrene dispersion, the OpenDLS calculated a particle size of 167 nm. This underestimation highlighted a recurring issue, likely due to multiple scattering events. While further dilution could improve accuracy, it would also complicate measurements by diminishing the signal strength, as the system already operates close to its hardware limits.
Broader Implications and Future Directions
The OpenDLS represents just one of many creative approaches to measuring small particle sizes. Other optical methods exist, and for laboratories equipped with electron microscopes, nanoparticles serve as effective subjects for testing and analysis.
As researchers continue to innovate, the development of accessible tools like OpenDLS stands to democratize the study of nanoparticles, making advanced measurement techniques available to a wider range of laboratories. This initiative could accelerate research in various fields, including materials science and nanotechnology, ultimately leading to novel applications and advancements.
