An engaging video released by hacker Electronic Wizard showcases the functionality of the 74HC595 shift register, emphasizing its effectiveness in driving 7-segment displays. This demonstration highlights how utilizing the 74HC595 can enhance project quality while managing the pin demands on microcontrollers.

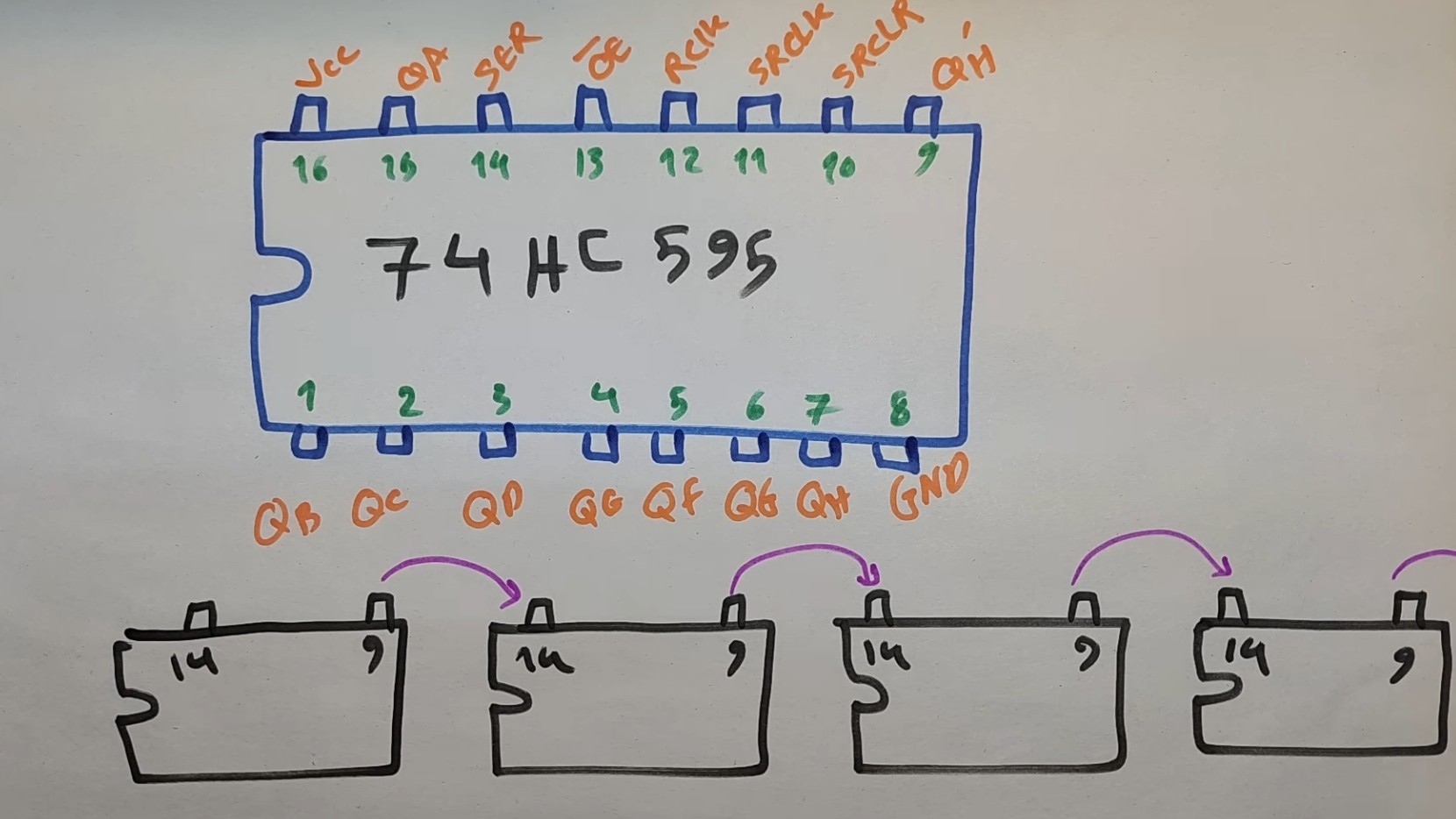

The 74HC595 shift register serves as a compact one-byte memory, allowing direct access to its eight output pins without requiring an input address. Each time the clock pin (CLK) is pulsed, the data shifts right by one bit, thereby making space for new data on the left. Bits that exit on the right can easily daisy-chain into another 74HC595, utilizing pin 9 to connect out and pin 14 to bring in.
Advantages of the 74HC595 in Project Design
Electronic Wizard further details the significance of pin 13, known as the active-low Output Enable. This feature prevents unwanted data from appearing on the 7-segment displays during initialization, ensuring a clean start for projects. Additionally, the 74HC595 can supply current itself, which reduces the power load on the microcontroller, an important consideration for efficient project design.
The tutorial also covers multiplexing techniques to drive multiple 7-segment displays. While this method can be effective, it has notable drawbacks, such as high pin counts and the potential for high-frequency flashing. Although the latter is typically imperceptible to the human eye, it can be captured by some cameras and recording equipment, making the 74HC595 a more reliable choice.
To summarize, with just three pins from the microcontroller, users can control one or more 7-segment displays effectively. For those seeking additional insights, including a deeper exploration of the 74HC595’s other pins and features, the video is highly recommended. Further interest in this topic might lead viewers to examine how the Bus Pirate 5 successfully employs two 74HC595 shift registers to expand its pin capacity by an extra 16 pins.
In conclusion, the 74HC595 shift register stands out as a robust solution for driving 7-segment displays, simplifying wiring while maximizing functionality. Enthusiasts and professionals alike can benefit from understanding and utilizing this component in their electronic projects.
