Innovations in sensor technology are leading to the development of magnetic potentiometers, which utilize magnetic sensing rather than traditional contact-based mechanisms. Unlike standard potentiometers that rely on a resistive strip and a moving contact, these magnetic alternatives offer significant advantages in accuracy and longevity. According to engineer T. K. Hareedran, the shift to magnetic sensing provides a more reliable solution for various applications.

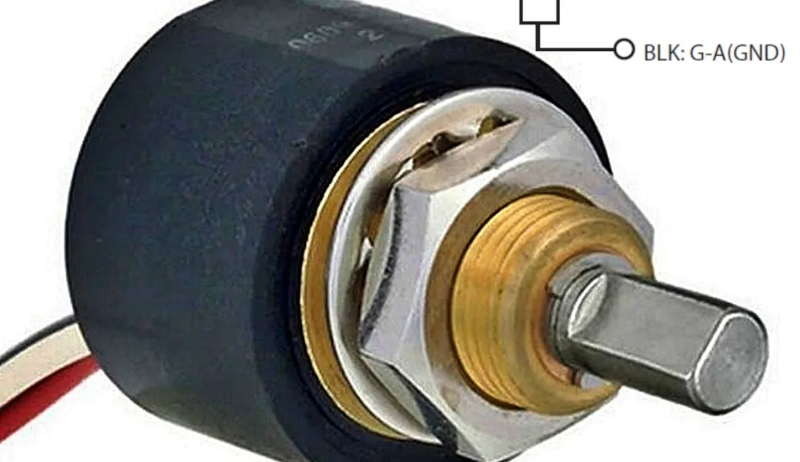

Traditional potentiometers, while straightforward in design, come with notable drawbacks. They can suffer from inaccuracies, are susceptible to temperature fluctuations and contamination, and their mechanical contacts tend to wear out over time. In contrast, magnetic potentiometers, such as the SK22B, operate differently. Instead of producing a resistive output, they function more accurately as rotary encoders with a voltage output.
Understanding Magnetic Potentiometers
The SK22B requires a 5 V input and outputs a voltage that ranges between 10% and 90% of that input on its wiper pin. This technology enhances linearity compared to conventional potentiometers and significantly extends the operational life of the device. While traditional potentiometers may be suitable for basic applications, magnetic potentiometers provide a modern alternative for those requiring higher precision.
Hareedran also demonstrates how to create a non-contact sensor using photosensors and a gray-coded wheel. This method emphasizes the need for careful sensor placement to ensure accurate readings. The potential for building non-contact resistive potentiometers exists, particularly with the use of a Field-Effect Transistor (FET) output stage. However, as Hareedran notes, these may not achieve the same versatility as the classic resistive designs.
The Future of Potentiometer Technology
The introduction of magnetic potentiometers marks a significant step forward in sensor technology. Their non-contact design eliminates many of the issues associated with traditional potentiometers, making them an appealing choice for engineers and hobbyists alike. As the demand for precise and durable sensors grows, innovations like those proposed by T. K. Hareedran are likely to play an essential role in shaping the future of electronic devices.
For individuals seeking robust and high-capacity devices, the shift toward magnetic sensing offers a promising avenue for exploration. Whether through DIY projects or commercial applications, the potential for development is vast. As this technology evolves, it will be interesting to see how engineers adapt these concepts to meet emerging needs in various industries.
